Thông tin chi tiết sản phẩm:
|
| Kiểu: | Máy phát video không dây | Tính thường xuyên: | 2.2g (2000m-2280m) |
|---|---|---|---|
| RF Power: | 4,5W (hố/25MW/800MW/4500MW) | Điều chế: | fm |
| Cung cấp điện: | 7-36V DC | Giao thức: | IRC Tramp |

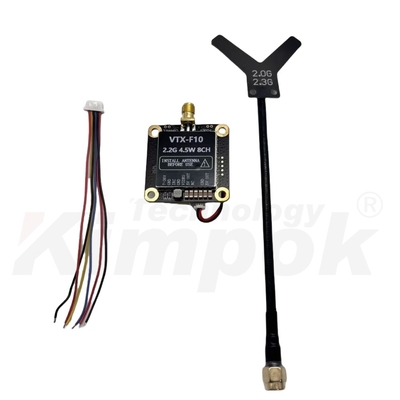

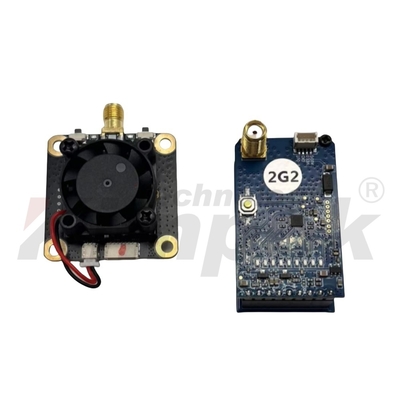

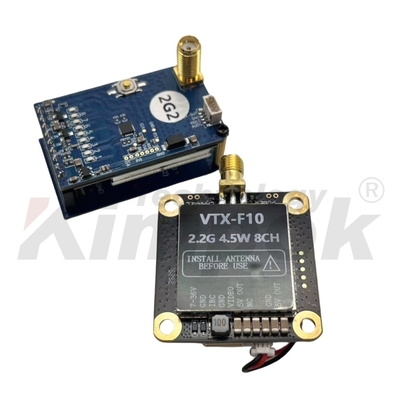

FPV Video Transmitter 2.2G 4.5W UAV VTX Drone Accessories Long-Distance Drone VTX VRX
Video Transmitter Parameter:
I.Main Feature:
Channels 8CH;
Control Protocol: IRC Tramp, supports OSD tuning;
Allows users to define custom frequencies within 2000-2280MHz using IRC Tramp tuning software;
Power: PIT / 25mW / 800mW / 4500mW;
Efficient DC/DC power input: 7-36V;
Supports 5V voltage output;
Supports installation on flight tower (30.5*30.5MM / M3 mounts)
II.Product Specifications
Transmitter (Air Unit):
Input Voltage: 7-36V DC (2-6S)
Output Voltage: 5V/0.5A
Weight: 21.5g (excluding antenna)
Dimensions (L*W*H): 37mm*46mm*17.5mm (including SMA connector and fan) Video Format: PAL/NTSC
Number of Channels: 8CH
Channel Selection: Frequency adjustment button (short press to switch)
Transmission Frequency: 8CH (see frequency table)
Power Adjustment: Power button (short press to switch)
Power Levels: 3 levels - 25mW / 800mW / 4500mW
Antenna Connector: SMA (external thread, internal hole)
Modulation Type: FM
Video Receiver Parameter:
I.Main features
Channel 8CH;
Support FatShark,Skyzone and other glasses VR headset display straight plug and analog display and other connection use;
High-sensitivity reception -97dBm;
High efficiency DC/DC power supply support 7-36V;
Support 5V voltage output;
Short click switch channel;
II.Product Parameter
Receiver(ground end):
Input voltage:7-36V DC(2-6S)
Output voltage:5V/0.5A
Video system:PAL/NTSC
Number of channels: 8 channels
Channel selection:Short press the switch frequency
Receiving frequency: 2000-2280MHz
Sensitivity:-97dBm (MAX)
Antenna interface:SMA(outer screw inner hole)
Modulation type:FM
